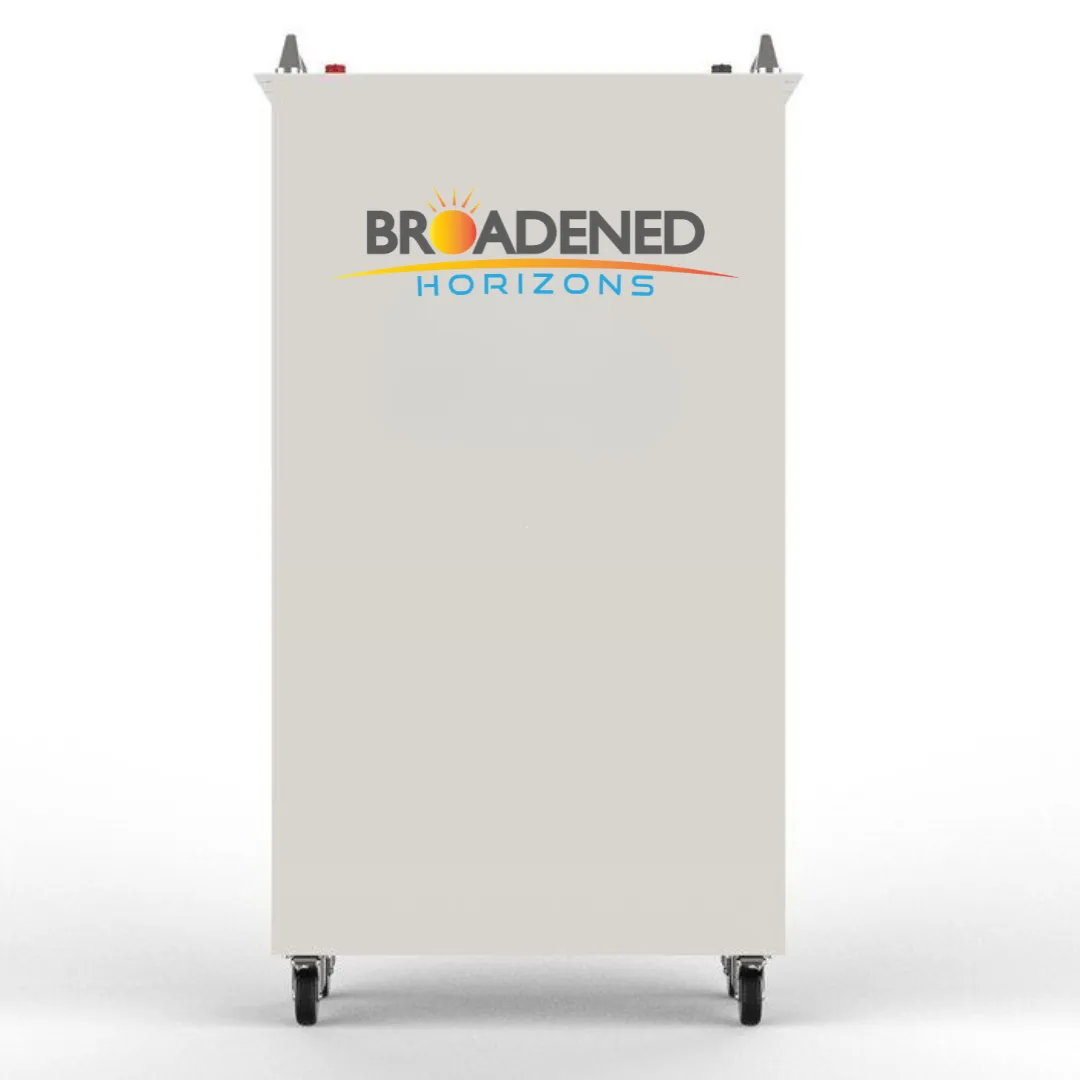

HSEV Grade Cells, 6000 Cycle Life, 14.4kWh LiFePO4 Battery

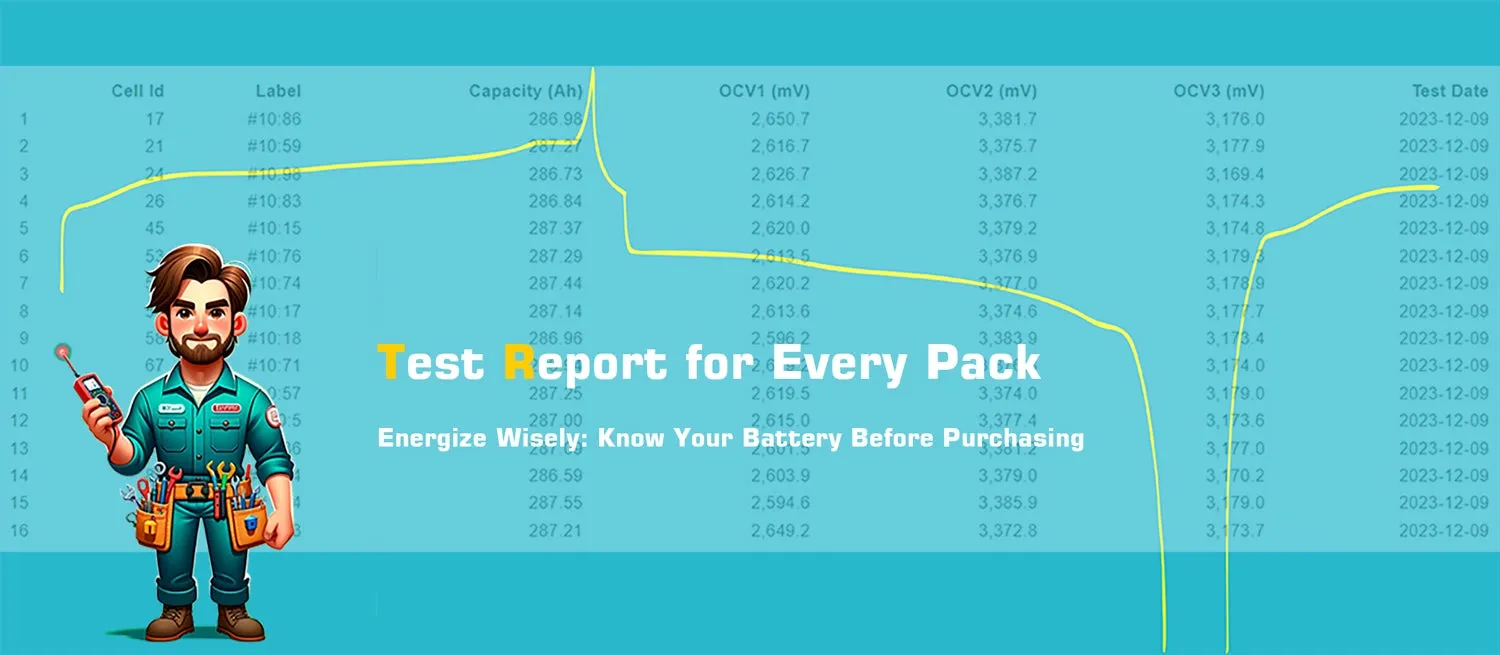

Every battery we construct is meticulously documented with comprehensive cell and pack test data.
| Default Working Voltage | 44V-55.2V |
| Full Capacity | 300Ah-315Ah @ 25℃ |
| Cell Grade | HSEV EVE280 |
| Cell Consistency | ★★★ |
| Pack Certification | CE, IEC-62619 |
- Cells Inside: Brand new EVE 280Ah cells with 6,000 times cycles life
- 2 Mounting Method: Standard 6U server rack or on floor
- BMS: 200A professional ESS BMS compatible with most inverters
- Communication Ports: RS485, CAN, RS232

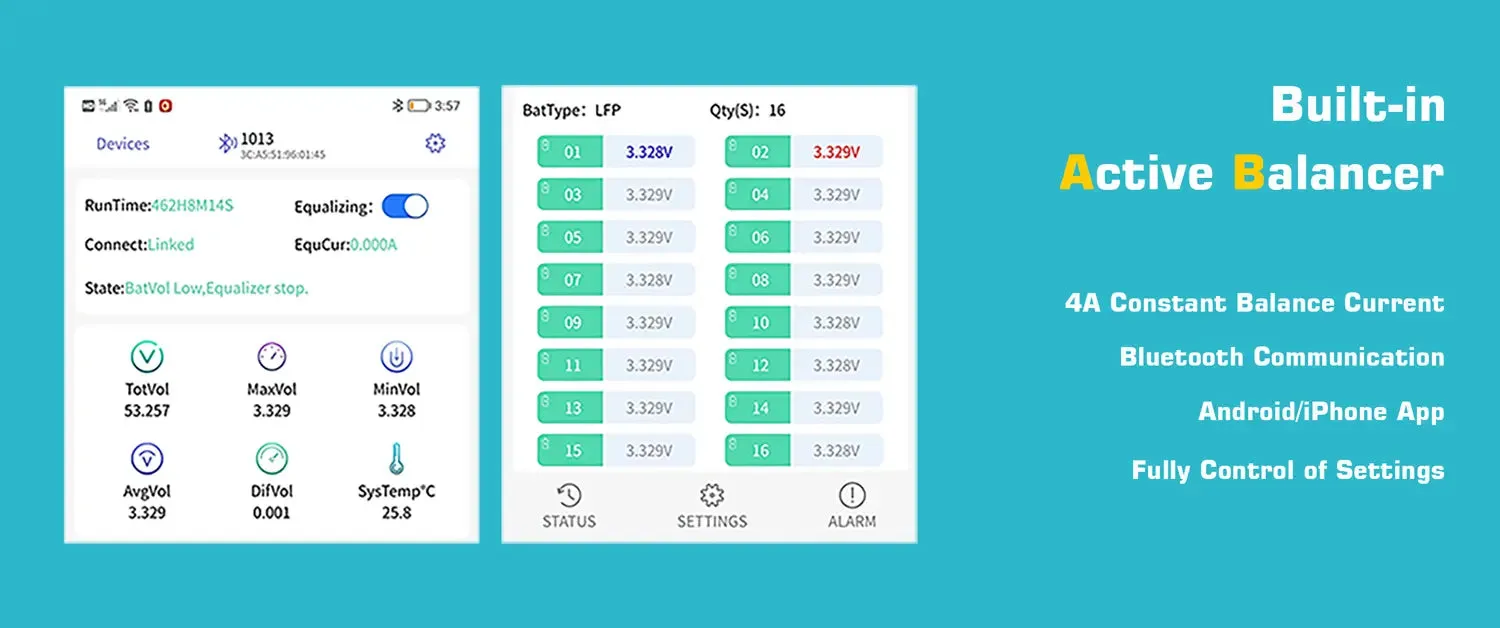

- Active Balance: Heltec 4A Bluetooth Active Balancer
- Compressed Cells: noval design able to impose 300kgf on cells
- Circuit Breaker: 250A
- Wheels: Easily Move
- Battery Type: Prismatic LiFePO4
- Nominal Voltage: 51.2V
- Nominal Capacity: 80Ah
- Total Energy: 14.34kWh
- Battery Cells: 16S1P 280Ah Cells
- Max Charge Current: 140A
- Max Discharge Current: 200A (150A Contineous)
- Charge Cut-off Protect Voltage: 55.2V
- Discharge Cut-off Protect Voltage: 44V
- Communication Port: RS485, RS232, CAN
- Parallel Connection: Max 15 Units in Parallels
- Series Connection: No
- Cycle life: 6000 Times
- Size: 19"x30.4"x9.5" inches (482.6*771.5*241mm)
- Weight: 260lb (118kg)
- Cooling: Natural cooling
- Environment: Indoor
- Mounting options: Floor - Floor-vertical orientation with wheels, Floor-horizontal stacked, or 6U Server Rack
- Discharge Temperature (℃): -30℃~ 60℃
- Charge Temperature (℃): 0℃ ~ 60℃
- Inverter Compatibility: Yes
- Active Balancer: Heltec (NEEY) 4A Bluetooth Balancer
- Maximum Elevation: 4000m
- Warranty: 10 Years
Check Victron VRM profiles here:
Quality Standards
All Broadened Horizons GP batteries undergo rigorous full cycling tests before being shipped. Some standards for cells are:
The maximum charging voltage when a single cell triggers overvoltage protection: ≥56V (The standard ensures that all battery cells possess commendable uniformity. The lower the voltage value, the poorer the consistency.)
The minimum discharge voltage when a single cell triggers low voltage protection: ≤44V (The standard ensures that all battery cells possess commendable uniformity. The higher the voltage value, the poorer the consistency.)
| CAN Port | RS485 Port |
| |
